产品名称：2BE1 102/103/151/152/153直联传动安装尺寸 |
| |
|
| |

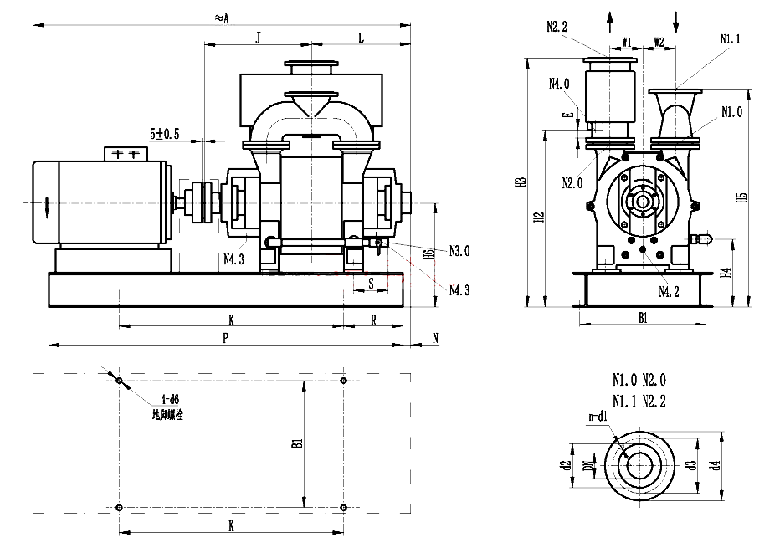

2BE1 102/103/151/152/153直联传动安装尺寸
 |
| |
N1.0进气端法兰 N1.1连通管法兰 N2.0排气端法兰
N2.2分离器法兰 N3.0工作液接口 N4.0分离器排液口
N4.2冲洗、排液口 N4.3泄漏液排放口
|
代号 |
A |
B1 |
d6 |
E |
H2 |
H3 |
H4 |
H5 |
H6 |
J |
K |
L |
N |
P |
R |
2BE1 102 |
1260 |
360 |
22 |
37 |
494 |
745 |
174 |
595 |
280 |
377 |
660 |
353 |
133 |
1015 |
176 |
2BE1 103 |
1395 |
360 |
22 |
37 |
494 |
745 |
174 |
595 |
280 |
409.5 |
840 |
395.5 |
92 |
1015 |
211 |
2BE1 151 |
1465 |
400 |
22 |
50 |
587 |
865 |
214 |
720 |
345 |
411.5 |
840 |
388.5 |
100 |
1265 |
211 |
2BE1 152 |
1490 |
400 |
22 |
50 |
587 |
865 |
214 |
720 |
345 |
424 |
840 |
401 |
125 |
1265 |
211 |
2BE1 153 |
1610 |
400 |
22 |
50 |
587 |
865 |
214 |
720 |
345 |
454 |
840 |
431 |
185 |
1265 |
211 |
代号 |
S |
W1 |
W2 |
N3.0 |
N4.0 |
N4.2 |
N4.3 |
|
|
|
|
|
|
|
|
2BE1 102 |
145 |
105 |
105 |
G3/4" |
G2" |
G1/2" |
G1/4" |
|
|
|
|
|
|
|
|
2BE1 103 |
145 |
105 |
105 |
G3/4" |
G2" |
G1/2" |
G1/4" |
|
|
|
|
|
|
|
|
2BE1 151 |
145 |
125 |
125 |
G3/4" |
G2" |
G1/2" |
G1/4" |
|
|
|
|
|
|
|
|
2BE1 152 |
145 |
125 |
125 |
G3/4" |
G2" |
G1/2" |
G1/4" |
|
|
|
|
|
|
|
|
2BE1 153 |
145 |
125 |
125 |
G3/4" |
G2" |
G1/2" |
G1/4" |
|
|
|
|
|
|
|
|
代号 |
DN |
d1 |
d2 |
d3 |
d4 |
n |
代号 |
DN |
d1 |
d2 |
d3 |
d4 |
n |
2BE1 102
2BE1 103 |
N1.0
N2.0 |
50 |
18 |
102 |
125 |
165 |
4 |
2BE1 151
2BE1 152
2BE1 153 |
N1.0
N2.0 |
65 |
18 |
122 |
145 |
185 |
4 |
N1.1
N2.2 |
65 |
18 |
122 |
145 |
185 |
4 |
N1.1
N2.2 |
100 |
18 |
158 |
180 |
220 |
8 |
|
|
